Pivot

The Pivot processor pivots a list field and creates a record for each item in the field. When you configure the Pivot processor, you specify the list field to pivot and where to write the pivoted data. The processor writes the pivoted data to the new field that you specify. You can also specify whether to keep the existing field. The Pivot processor supports the pivoting of multiple fields.

Generated Records

When you pivot a field, the Pivot processor creates a new record for each first-level item in the list.

When pivoting a field, you can include the existing fields in the record or drop them, using only the pivoted data in the new records.

Incoming data
Say you have the following data sample, and you want to pivot the metadata_authors data:
{
     "metadata_authors": [
        {
           "affiliation": {
               "institution": "University of Toronto",
               "laboratory": "",
               "location": {}
                       },
                "email": "",
                "first": "Andrea",
                "last": "Leung",
                "middle": [
                    "S"
                           ],
                 "suffix": ""
                            },
         {
           "affiliation": {
            "institution": "University of Toronto",
            "laboratory": "",
            "location": {}
                             },
            "email": "vanessa.tran@utoronto.ca",
            "first": "Vanessa",
            "last": "Tran",
            "middle": [],
            "suffix": ""
                             }
         ],
    "metadata_title": "BMC Genomics Novel genome polymorphisms in BCG vaccine strains and impact on efficacy"
}
Pivot to new field, keep existing field

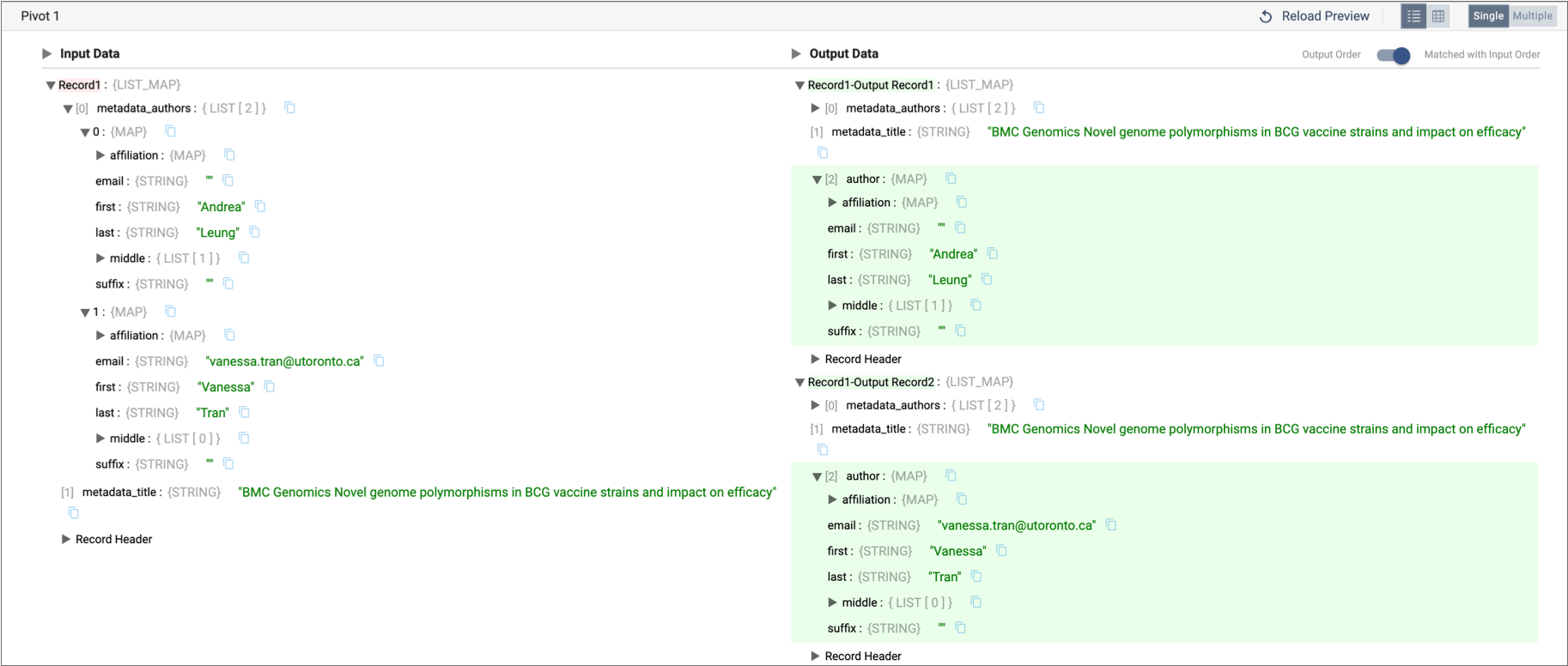

If you configure the processor to pivot the metadata_authors field to a new field called author and keep the existing field, the Pivot processor adds the author field at the same level while keeping the metadata_authors field, as follows:

Pivot to new field, drop existing field

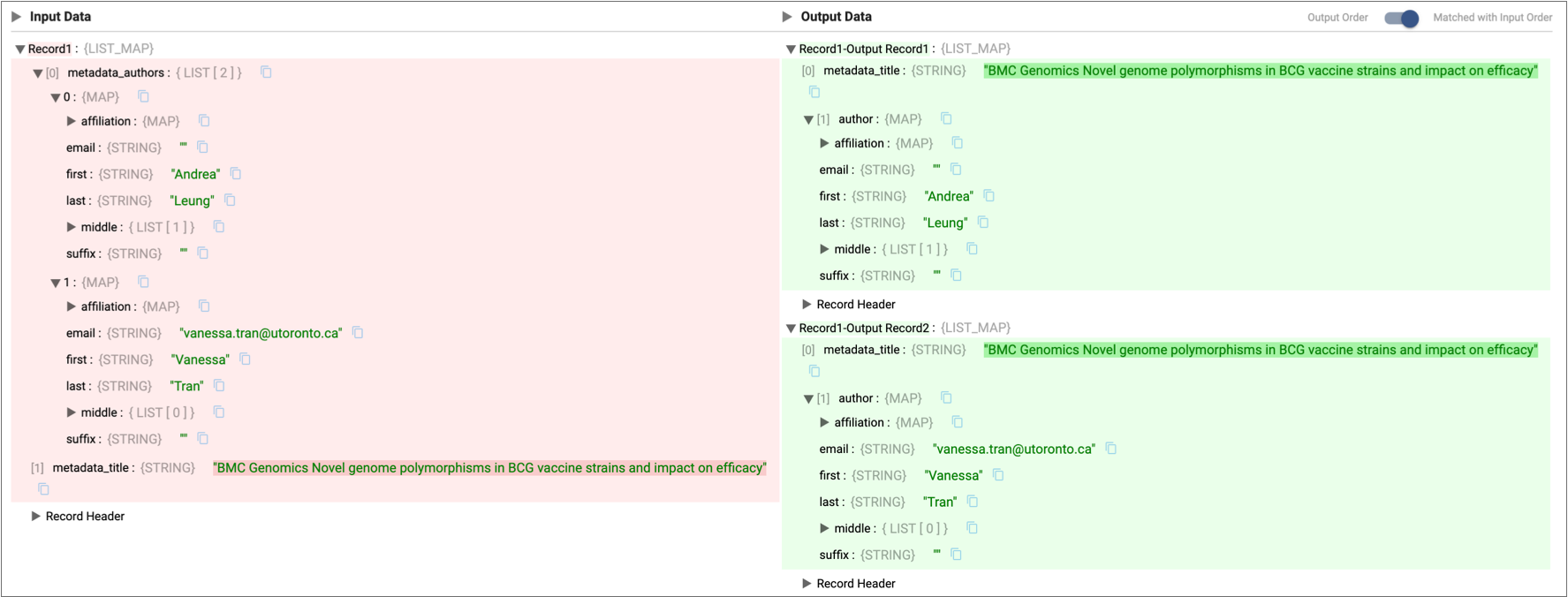

If you configure the processor to pivot the metadata_authors field to a new field called author and drop the existing field, the Pivot processor adds the author field at the same level while dropping the metadata_authors field, as follows:

Configuring a Pivot Processor

Configure a Pivot processor to pivot data in a list field and generate a record for each item in the field. You can specify multiple fields to pivot.

  1. In the Properties panel, on the General tab, configure the following properties:
    General Property Description
    Name Stage name.
    Description Optional description.
    Cache Data Caches processed data so the data can be reused for multiple downstream stages. Use to improve performance when the stage passes data to multiple stages.

    Caching can limit pushdown optimization when the pipeline runs in ludicrous mode.
  2. On the Pivot tab, configure the following properties:
    Pivot Property Description
    Field to Pivot List field to pivot.
    New Field Name New field name for the records generated by the pivot.
    Keep Pivoted Field Select to keep the original field in the generated output.
  3. Click the Add icon to specify additional pivots. The processor pivots the fields in the specified order.
