Kafka Producer

Supported pipeline types: Data Collector Data Collector Edge

The Kafka Producer destination writes data to a Kafka cluster. The destination can also send responses to a microservice origin when used in a microservice pipeline.

When you configure a Kafka Producer, you define connection information, the partition strategy, and data format to use. You can also configure Kafka Producer to determine the topic to write to at runtime.

The Kafka Producer passes data to partitions in the Kafka topic based on the partition strategy that you choose. You can optionally write a batch of records to the Kafka cluster as a single message. When you want the destination to send responses to a microservice origin within a microservice pipeline, you specify the type of response to send.

You can add additional Kafka configuration properties as needed. You can also configure the origin to use Kafka security features.

You can configure the Kafka Producer to work with the Confluent Schema Registry. The Confluent Schema Registry is a distributed storage layer for Avro schemas which uses Kafka as its underlying storage mechanism.

Broker List

The Kafka Producer connects to Kafka based on the topic and associated brokers that you specify. To ensure a connection in case a specified broker goes down, list as many brokers as possible.

Runtime Topic Resolution

Kafka Producer can write a record to the topic based on an expression. When Kafka Producer evaluates a record, it calculates the expression based on record values and writes the record to the resulting topic.

When performing runtime topic resolution, Kafka Producer can write to any topic by default. You can create a white list of topics to limit the number of topics Kafka Producer attempts to use. When you create a white list, any record that resolves to an unlisted topic is sent to the stage for error handling. Use a white list when record data might resolve to invalid topic names.

Partition Strategy

The partition strategy determines how to write data to Kafka partitions. You can use a partition strategy to balance the work load or to write data semantically.

The Kafka Producer provides the following partition strategies:

Round-Robin

Writes each record to a different partition using a cyclical order. Use for load balancing.

Random

Writes each record to a different partition using a random order. Use for load balancing.

Expression

Writes each record to a partition based on the results of the partition expression. Use to perform semantic partitioning.

When you configure the partition expression, define the expression to evaluate to the partition where you want each record written. The expression must return a numeric value.

For example, the following expression writes records to two partitions based on the value in the Age field:

${record:value('/Age') < 21 ? 0 : 1}

The following example writes to three partitions based on the value of the Age field:

${record:value('/a') < 21 ? 0 : record:value('/a') < 55 ? 1 : 2}

Default

Writes each record using the default partition strategy that Kafka provides.

When you use the default partition strategy, you configure a partition expression that returns the partition key from the records, such as ${record:value('/partitionkey')}. The expression must return a string value.

The Kafka Producer writes each record to a partition based on a hash of the partition key.

Send Microservice Responses

The Kafka Producer destination can send responses to a microservice origin when you use the destination in a microservice pipeline.

When sending responses to a microservice origin, the destination can send one of the following:

All successfully written records.
Responses from the destination system - For information about the possible responses, see the documentation for the destination system.

Additional Kafka Properties

You can add custom Kafka configuration properties to the Kafka Producer destination.

When you add a Kafka configuration property, enter the exact property name and the value. The stage does not validate the property names or values.

Several properties are defined by default, you can edit or remove the properties as necessary.

Note: Because the stage uses several configuration properties, it ignores user-defined values for the following properties:

key.serializer.class
metadata.broker.list
partitioner.class
producer.type
serializer.class

Enabling Security

You can configure the Kafka Producer to connect securely to Kafka through SSL/TLS, Kerberos, or both.

In Data Collector Edge pipelines, the Kafka Producer destination supports only SSL/TLS.

Enabling SSL/TLS

Perform the following steps to enable the Kafka Producer to use SSL/TLS to connect to Kafka.

In Data Collector Edge pipelines, only the security.protocol, ssl.truststore.location, and ssl.keystore.location Kafka configuration properties are valid. For the truststore and keystore locations, enter an absolute path for the truststore and keystore files that use the PEM format. In Data Collector Edge pipelines, do not add any of the other SSL Kafka properties listed in these instructions.

To use SSL/TLS to connect, first make sure Kafka is configured for SSL/TLS as described in the Kafka documentation.
On the General tab of the stage, set the Stage Library property to the appropriate Apache Kafka version.
On the Kafka tab, add the security.protocol Kafka configuration property and set it to SSL.
Then add and configure the following SSL Kafka properties:
- ssl.truststore.location
- ssl.truststore.password
When the Kafka broker requires client authentication - when the ssl.client.auth broker property is set to "required" - add and configure the following properties:
- ssl.keystore.location
- ssl.keystore.password
- ssl.key.password
Some brokers might require adding the following properties as well:
- ssl.enabled.protocols
- ssl.truststore.type
- ssl.keystore.type
For details about these properties, see the Kafka documentation.

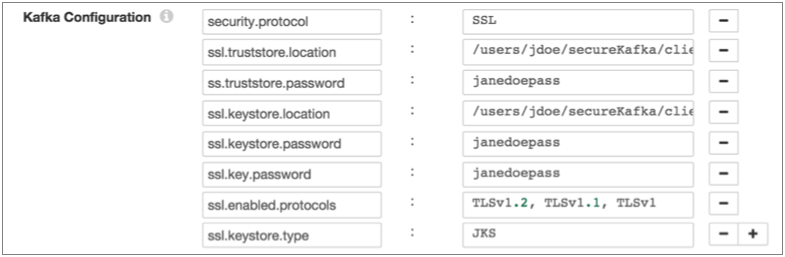

For example, the following properties allow the stage to use SSL/TLS to connect to Kafka with client authentication:

Enabling Kerberos (SASL)

When you use Kerberos authentication, Data Collector uses the Kerberos principal and keytab to connect to Kafka. Perform the following steps to enable the Kafka Producer destination to use Kerberos to connect to Kafka.

Not valid in Data Collector Edge pipelines. In Data Collector Edge pipelines, the Kafka Producer destination supports only SSL/TLS.

To use Kerberos, first make sure Kafka is configured for Kerberos as described in the Kafka documentation.
Make sure that Kerberos authentication is enabled for Data Collector, as described in Kerberos Authentication.
Add the Java Authentication and Authorization Service (JAAS) configuration properties required for Kafka clients based on your installation and authentication type:
- RPM, tarball, or Cloudera Manager installation without LDAP authentication - If Data Collector does not use LDAP authentication, create a separate JAAS configuration file on the Data Collector machine. Add the following KafkaClient login section to the file:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="<keytab path>"
    principal="<principal name>/<host name>@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/sdc.keytab"
    principal="sdc/sdc-01.streamsets.net@EXAMPLE.COM";
};
```
  Then modify the SDC_JAVA_OPTS environment variable to include the following option that defines the path to the JAAS configuration file:
```
-Djava.security.auth.login.config=<JAAS config path>
```
  Modify environment variables using the method required by your installation type.
- RPM or tarball installation with LDAP authentication - If LDAP authentication is enabled in an RPM or tarball installation, add the properties to the JAAS configuration file used by Data Collector - the $SDC_CONF/ldap-login.conf file. Add the following KafkaClient login section to the end of the ldap-login.conf file:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="<keytab path>"
    principal="<principal name>/<host name>@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/sdc.keytab"
    principal="sdc/sdc-01.streamsets.net@EXAMPLE.COM";
};
```
- Cloudera Manager installation with LDAP authentication - If LDAP authentication is enabled in a Cloudera Manager installation, enable the LDAP Config File Substitutions (ldap.login.file.allow.substitutions) property for the StreamSets service in Cloudera Manager.
  If the Use Safety Valve to Edit LDAP Information (use.ldap.login.file) property is enabled and LDAP authentication is configured in the Data Collector Advanced Configuration Snippet (Safety Valve) for ldap-login.conf field, then add the JAAS configuration properties to the same ldap-login.conf safety valve.

  If LDAP authentication is configured through the LDAP properties rather than the ldap-login.conf safety value, add the JAAS configuration properties to the Data Collector Advanced Configuration Snippet (Safety Valve) for generated-ldap-login-append.conf field.

  Add the following KafkaClient login section to the appropriate field as follows:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="_KEYTAB_PATH"
    principal="<principal name>/_HOST@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="_KEYTAB_PATH"
    principal="sdc/_HOST@EXAMPLE.COM";
};
```
  Cloudera Manager generates the appropriate keytab path and host name.
On the General tab of the stage, set the Stage Library property to the appropriate Apache Kafka version.
On the Kafka tab, add the security.protocol Kafka configuration property, and set it to SASL_PLAINTEXT.
Then, add the sasl.kerberos.service.name configuration property, and set it to kafka.

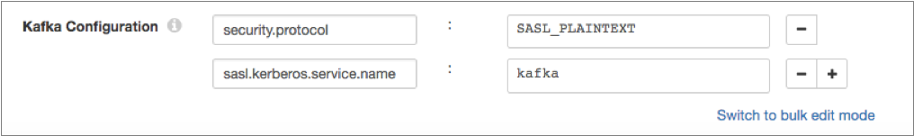

For example, the following Kafka properties enable connecting to Kafka with Kerberos:

Enabling SSL/TLS and Kerberos

You can enable Kafka Producer to use SSL/TLS and Kerberos to connect to Kafka.

Not valid in Data Collector Edge pipelines. In Data Collector Edge pipelines, the Kafka Producer destination supports using only SSL/TLS to connect to Kafka.

To use SSL/TLS and Kerberos, combine the required steps to enable each and set the security.protocol property as follows:

Make sure Kafka is configured to use SSL/TLS and Kerberos (SASL) as described in the following Kafka documentation:
- http://kafka.apache.org/documentation.html#security_ssl
- http://kafka.apache.org/documentation.html#security_sasl
Make sure that Kerberos authentication is enabled for Data Collector, as described in Kerberos Authentication.
Add the Java Authentication and Authorization Service (JAAS) configuration properties required for Kafka clients based on your installation and authentication type:
- RPM, tarball, or Cloudera Manager installation without LDAP authentication - If Data Collector does not use LDAP authentication, create a separate JAAS configuration file on the Data Collector machine. Add the following KafkaClient login section to the file:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="<keytab path>"
    principal="<principal name>/<host name>@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/sdc.keytab"
    principal="sdc/sdc-01.streamsets.net@EXAMPLE.COM";
};
```
  Then modify the SDC_JAVA_OPTS environment variable to include the following option that defines the path to the JAAS configuration file:
```
-Djava.security.auth.login.config=<JAAS config path>
```
  Modify environment variables using the method required by your installation type.
- RPM or tarball installation with LDAP authentication - If LDAP authentication is enabled in an RPM or tarball installation, add the properties to the JAAS configuration file used by Data Collector - the $SDC_CONF/ldap-login.conf file. Add the following KafkaClient login section to the end of the ldap-login.conf file:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="<keytab path>"
    principal="<principal name>/<host name>@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/sdc.keytab"
    principal="sdc/sdc-01.streamsets.net@EXAMPLE.COM";
};
```
- Cloudera Manager installation with LDAP authentication - If LDAP authentication is enabled in a Cloudera Manager installation, enable the LDAP Config File Substitutions (ldap.login.file.allow.substitutions) property for the StreamSets service in Cloudera Manager.
  If the Use Safety Valve to Edit LDAP Information (use.ldap.login.file) property is enabled and LDAP authentication is configured in the Data Collector Advanced Configuration Snippet (Safety Valve) for ldap-login.conf field, then add the JAAS configuration properties to the same ldap-login.conf safety valve.

  If LDAP authentication is configured through the LDAP properties rather than the ldap-login.conf safety value, add the JAAS configuration properties to the Data Collector Advanced Configuration Snippet (Safety Valve) for generated-ldap-login-append.conf field.

  Add the following KafkaClient login section to the appropriate field as follows:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="_KEYTAB_PATH"
    principal="<principal name>/_HOST@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="_KEYTAB_PATH"
    principal="sdc/_HOST@EXAMPLE.COM";
};
```
  Cloudera Manager generates the appropriate keytab path and host name.
On the General tab of the stage, set the Stage Library property to the appropriate Apache Kafka version.
On the Kafka tab, add the security.protocol property and set it to SASL_SSL.
Then, add the sasl.kerberos.service.name configuration property, and set it to kafka.
Then add and configure the following SSL Kafka properties:
- ssl.truststore.location
- ssl.truststore.password
When the Kafka broker requires client authentication - when the ssl.client.auth broker property is set to "required" - add and configure the following properties:
- ssl.keystore.location
- ssl.keystore.password
- ssl.key.password
Some brokers might require adding the following properties as well:
- ssl.enabled.protocols
- ssl.truststore.type
- ssl.keystore.type
For details about these properties, see the Kafka documentation.

Data Formats

The Kafka Producer destination writes data to Kafka based on the data format that you select.

In Data Collector Edge pipelines, the destination supports only the Binary, JSON, SDC Record, and Text data formats.

The Kafka Producer destination processes data formats as follows::

Avro

The destination writes records based on the Avro schema.

You can use one of the following methods to specify the location of the Avro schema definition:

In Pipeline Configuration - Use the schema that you provide in the stage configuration.
In Record Header - Use the schema included in the avroSchema record header attribute.
Confluent Schema Registry - Retrieve the schema from Confluent Schema Registry. The Confluent Schema Registry is a distributed storage layer for Avro schemas. You can configure the destination to look up the schema in the Confluent Schema Registry by the schema ID or subject.
You must specify the method that the Kafka Producer uses to serialize the messages in the Avro format. To embed the Avro schema ID in each message that the destination writes, set the key and value serializers to Confluent on the Kafka tab.

If using the Avro schema in the stage or in the record header attribute, you can optionally configure the destination to register the Avro schema with the Confluent Schema Registry. You can also optionally include the schema definition in the message.

You can include the Avro schema in the output. You can also compress data with an Avro-supported compression codec.

Binary

The stage writes binary data to a single field in the record.

Delimited

The destination writes records as delimited data. When you use this data format, the root field must be list or list-map.

You can use the following delimited format types:

Default CSV - File that includes comma-separated values. Ignores empty lines in the file.
RFC4180 CSV - Comma-separated file that strictly follows RFC4180 guidelines.
MS Excel CSV - Microsoft Excel comma-separated file.
MySQL CSV - MySQL comma-separated file.
Tab-Separated Values - File that includes tab-separated values.
PostgreSQL CSV - PostgreSQL comma-separated file.
PostgreSQL Text - PostgreSQL text file.
Custom - File that uses user-defined delimiter, escape, and quote characters.
Multi Character Delimited - File that uses multiple user-defined characters to delimit fields and lines, and single user-defined escape and quote characters.

JSON

The destination writes records as JSON data. You can use one of the following formats:

Array - Each file includes a single array. In the array, each element is a JSON representation of each record.
Multiple objects - Each file includes multiple JSON objects. Each object is a JSON representation of a record.

Protobuf

Writes one record in a message. Uses the user-defined message type and the definition of the message type in the descriptor file to generate the message.

For information about generating the descriptor file, see Protobuf Data Format Prerequisites.

SDC Record

The destination writes records in the SDC Record data format.

Text

The destination writes data from a single text field to the destination system. When you configure the stage, you select the field to use. When necessary, merge record data into the field earlier in the pipeline.

You can configure the characters to use as record separators. By default, the destination uses a UNIX-style line ending (\n) to separate records.

When a record does not contain the selected text field, you can configure the destination to report the missing field as an error or to ignore the missing field. By default, the destination reports an error.

When configured to ignore a missing text field, you can configure the destination to discard the record or to write the record separator characters to create an empty line for the record. By default, the destination discards the record.

XML

The destination creates a valid XML document for each record. The destination requires the record to have a single root field that contains the rest of the record data. For details and suggestions for how to accomplish this, see Record Structure Requirement.

The destination can include indentation to produce human-readable documents. It can also validate that the generated XML conforms to the specified schema definition. Records with invalid schemas are handled based on the error handling configured for the destination.

Configuring a Kafka Producer

Configure a Kafka Producer to write data to a Kafka cluster.

In the Properties panel, on the General tab, configure the following properties:

General Property	Description
Name	Stage name.
Description	Optional description.
Stage Library	Library version that you want to use.
Required Fields	Fields that must include data for the record to be passed into the stage. Tip: You might include fields that the stage uses. Records that do not include all required fields are processed based on the error handling configured for the pipeline.
Preconditions	Conditions that must evaluate to TRUE to allow a record to enter the stage for processing. Click Add to create additional preconditions. Records that do not meet all preconditions are processed based on the error handling configured for the stage.
On Record Error	Error record handling for the stage: Discard - Discards the record. Send to Error - Sends the record to the pipeline for error handling. Stop Pipeline - Stops the pipeline.

On the Kafka tab, configure the following properties:

Kafka Properties	Description
Broker URI	Connection string for the Kafka broker. Use the following format: `<host>:<port>`. To ensure a connection, enter a comma-separated list of additional broker URI.
Runtime Topic Resolution	Evaluates an expression at runtime to determine the topic to use for each record.
Topic	Topic to use. Not available when using runtime topic resolution.
Topic Expression	Expression used to determine where each record is written when using runtime topic resolution. Use an expression that evaluates to a topic name.
Topic White List	List of valid topic names to write to when using runtime topic resolution. Use to avoid writing to invalid topics. Records that resolve to invalid topic names are passed to the stage for error handling. Use an asterisk (*) to allow writing to any topic name. By default, all topic names are valid.
Partition Strategy	Strategy to use to write to partitions: Round Robin - Takes turns writing to different partitions. Random - Writes to partitions randomly. Expression - Uses an expression to write data to different partitions. Writes records to the partitions specified by the results of the expression. Default - Uses an expression to extract a partition key from the record. Writes records to partitions based on a hash of the partition key.
Partition Expression	Expression to use with the default or expression partition strategy. When using the default partition strategy, specify an expression that returns the partition key from the record. The expression must evaluate to a string value. When using the expression partition strategy, specify an expression that evaluates to the partition where you want each record written. Partition numbers start with 0. The expression must evaluate to a numeric value. Optionally, click Ctrl + Space Bar for help with creating the expression.
One Message per Batch	For each batch, writes the records to each partition as a single message.
Kafka Configuration	Additional Kafka properties to use. Using simple or bulk edit mode, click the Add icon and define the Kafka property name and value. Use the property names and values as expected by Kafka. Do not use the broker.list property. For information about enabling secure connections to Kafka, see Enabling Security.
Key Serializer	Method used to serialize the Kafka message key when the configured data format is Avro. Set to Confluent to embed the Avro schema ID in each message that Kafka Producer writes.
Value Serializer	Method used to serialize the Kafka message value when the configured data format is Avro. Set to Confluent to embed the Avro schema ID in each message that Kafka Producer writes.

On the Data Format tab, configure the following property:

Data Format Property	Description
Data Format	Data format for messages. Use one of the following formats: Avro Binary Delimited JSON Protobuf SDC Record Text XML In Data Collector Edge pipelines, the destination supports only the Binary, JSON, SDC Record, and Text data formats.

Data Format Property

Description

Data Format

Data format for messages. Use one of the following formats:

Avro
Binary
Delimited
JSON
Protobuf
SDC Record
Text
XML

In Data Collector Edge pipelines, the destination supports only the Binary, JSON, SDC Record, and Text data formats.

For Avro data, on the Data Format tab, configure the following properties:

Avro Property	Description
Avro Schema Location	Location of the Avro schema definition to use when writing data: In Pipeline Configuration - Use the schema that you provide in the stage configuration. In Record Header - Use the schema in the avroSchema record header attribute. Use only when the avroSchema attribute is defined for all records. Confluent Schema Registry - Retrieve the schema from the Confluent Schema Registry.
Avro Schema	Avro schema definition used to write the data. You can optionally use the runtime:loadResource function to use a schema definition stored in a runtime resource file.
Register Schema	Select to register a new Avro schema with the Confluent Schema Registry.
Schema Registry URLs	Confluent Schema Registry URLs used to look up the schema or to register a new schema. To add a URL, click Add. Use the following format to enter the URL: `http://<host name>:<port number>`
Look Up Schema By	Method used to look up the schema in the Confluent Schema Registry: Subject - Look up the specified Avro schema subject. Schema ID - Look up the specified Avro schema ID.
Schema Subject	Avro schema subject to look up or to register in the Confluent Schema Registry. If the specified subject to look up has multiple schema versions, the origin uses the latest schema version for that subject. To use an older version, find the corresponding schema ID, and then set the Look Up Schema By property to Schema ID.
Schema ID	Avro schema ID to look up in the Confluent Schema Registry.
Include Schema	Includes the schema in each message. Note: If you configured Kafka Producer to embed the Avro schema ID in each message that it writes, clear this property.
Avro Compression Codec	The Avro compression type to use. When using Avro compression, do not enable other compression available in the destination.

For binary data, on the Data Format tab, configure the following property:

Binary Property Description

Binary Field Path Field that contains the binary data.

Binary Property	Description
Binary Field Path	Field that contains the binary data.

For delimited data, on the Data Format tab, configure the following properties:

Delimited Property	Description
Delimiter Format	Format for delimited data: Default CSV - File that includes comma-separated values. Ignores empty lines in the file. RFC4180 CSV - Comma-separated file that strictly follows RFC4180 guidelines. MS Excel CSV - Microsoft Excel comma-separated file. MySQL CSV - MySQL comma-separated file. Tab-Separated Values - File that includes tab-separated values. PostgreSQL CSV - PostgreSQL comma-separated file. PostgreSQL Text - PostgreSQL text file. Custom - File that uses user-defined delimiter, escape, and quote characters.
Header Line	Indicates whether to create a header line.
Replace New Line Characters	Replaces new line characters with the configured string. Recommended when writing data as a single line of text.
New Line Character Replacement	String to replace each new line character. For example, enter a space to replace each new line character with a space. Leave empty to remove the new line characters.
Delimiter Character	Delimiter character for a custom delimiter format. Select one of the available options or use Other to enter a custom character. You can enter a Unicode control character using the format \uNNNN, where N is a hexadecimal digit from the numbers 0-9 or the letters A-F. For example, enter \u0000 to use the null character as the delimiter or \u2028 to use a line separator as the delimiter. Default is the pipe character ( \| ).
Escape Character	Escape character for a custom delimiter format. Select one of the available options or use Other to enter a custom character. Default is the backslash character ( \ ).
Quote Character	Quote character for a custom delimiter format. Select one of the available options or use Other to enter a custom character. Default is the quotation mark character ( " ).
Charset	Character set to use when writing data.

For JSON data, on the Data Format tab, configure the following property:

JSON Property	Description
JSON Content	Determines how JSON data is written: JSON Array of Objects - Each file includes a single array. In the array, each element is a JSON representation of each record. Multiple JSON Objects - Each file includes multiple JSON objects. Each object is a JSON representation of a record.
Charset	Character set to use when writing data.

For protobuf data, on the Data Format tab, configure the following properties:

Protobuf Property	Description
Protobuf Descriptor File	Descriptor file (.desc) to use. The descriptor file must be in the Data Collector resources directory, `$SDC_RESOURCES`. For more information about environment variables, see Data Collector Environment Configuration. For information about generating the descriptor file, see Protobuf Data Format Prerequisites.
Message Type	The fully-qualified name for the message type to use when writing data. Use the following format: `<package name>.<message type>`. Use a message type defined in the descriptor file.

For text data, on the Data Format tab, configure the following properties:

Text Property	Description
Text Field Path	Field that contains the text data to be written. All data must be incorporated into the specified field.
Record Separator	Characters to use to separate records. Use any valid Java string literal. For example, when writing to Windows, you might use \r\n to separate records. By default, the destination uses \n.
On Missing Field	When a record does not include the text field, determines whether the destination reports the missing field as an error or ignores the missing field.
Insert Record Separator if No Text	When configured to ignore a missing text field, inserts the configured record separator string to create an empty line. When not selected, discards records without the text field.
Charset	Character set to use when writing data.

For XML data, on the Data Format tab, configure the following properties:

XML Property	Description
Pretty Format	Adds indentation to make the resulting XML document easier to read. Increases the record size accordingly.
Validate Schema	Validates that the generated XML conforms to the specified schema definition. Records with invalid schemas are handled based on the error handling configured for the destination. Important: Regardless of whether you validate the XML schema, the destination requires the record in a specific format. For more information, see Record Structure Requirement.
XML Schema	The XML schema to use to validate records.

When using the destination in a microservice pipeline, on the Response tab, configure the following properties. In non-microservice pipelines, these properties are ignored.

Response Property	Description
Send Response to Origin	Enables sending a response to a microservice origin.
Response Type	The response to send to a microservice origin: Successfully written records. Responses from the destination system.
