UDP to Kafka (Deprecated)

The UDP to Kafka origin reads messages from one or more UDP ports and writes each message directly to Kafka. However, the UDP to Kafka origin is now deprecated and will be removed in a future release. We recommend using the UDP Multithreaded Source origin that can use multiple threads to enable parallel processing of data from multiple UDP ports.

Use the UDP to Kafka origin to read large volumes of data from multiple UDP ports and write the data immediately to Kafka, without additional processing.

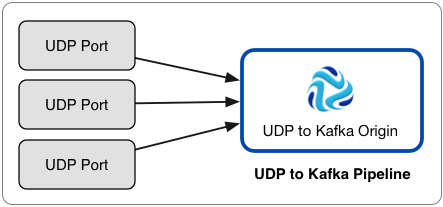

Here is an example of the recommended architecture for using the UDP to Kafka origin:

If you need to process data before writing it to Kafka, need to write to a destination system other than Kafka, or if the origin does not need to process high volumes of data, use the UDP Source origin.

UDP to Kafka can process collectd messages, NetFlow 5 and NetFlow 9 messages, and the following types of syslog messages:

RFC 5424
RFC 3164
Non-standard common messages, such as RFC 3339 dates with no version digit

When processing NetFlow messages, the stage generates different records based on the NetFlow version. When processing NetFlow 9, the records are generated based on the NetFlow 9 configuration properties. For more information, see NetFlow Data Processing.

When you configure UDP to Kafka, you specify the UDP ports to use, Kafka configuration information, and advanced properties such as the maximum number of write requests.

You can add Kafka configuration properties and enable Kafka security as needed.

Pipeline Configuration

When you use a UDP to Kafka origin in a pipeline, connect the origin to a Trash destination.

The UDP to Kafka origin writes records directly to Kafka. The origin does not pass records to its output port, so you cannot perform additional processing or write the data to other destination systems.

However, since a pipeline requires a destination, you should connect the origin to the Trash destination to satisfy pipeline validation requirements.

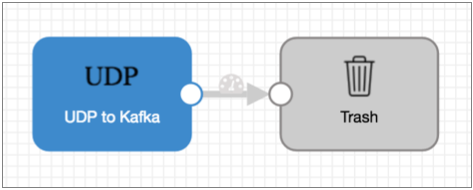

A pipeline with the UDP to Kafka origin should look like this:

Additional Kafka Properties

You can add custom Kafka configuration properties to the UDP to Kafka origin.

When you add a Kafka configuration property, enter the exact property name and the value. The stage does not validate the property names or values.

Several properties are defined by default, you can edit or remove the properties as necessary.

Note: Because the stage uses several configuration properties, it ignores user-defined values for the following properties:

key.serializer.class
metadata.broker.list
partitioner.class
producer.type
serializer.class

Enabling Kafka Security

You can configure the UDP to Kafka origin to connect securely to Kafka through SSL/TLS, Kerberos, or both.

Enabling SSL/TLS

Perform the following steps to enable the UDP to Kafka origin to use SSL/TLS to connect to Kafka.

To use SSL/TLS to connect, first make sure Kafka is configured for SSL/TLS as described in the Kafka documentation.
On the General tab of the stage, set the Stage Library property to the appropriate Apache Kafka version.
On the Kafka tab, add the security.protocol Kafka configuration property and set it to SSL.
Then add and configure the following SSL Kafka properties:
- ssl.truststore.location
- ssl.truststore.password
When the Kafka broker requires client authentication - when the ssl.client.auth broker property is set to "required" - add and configure the following properties:
- ssl.keystore.location
- ssl.keystore.password
- ssl.key.password
Some brokers might require adding the following properties as well:
- ssl.enabled.protocols
- ssl.truststore.type
- ssl.keystore.type
For details about these properties, see the Kafka documentation.

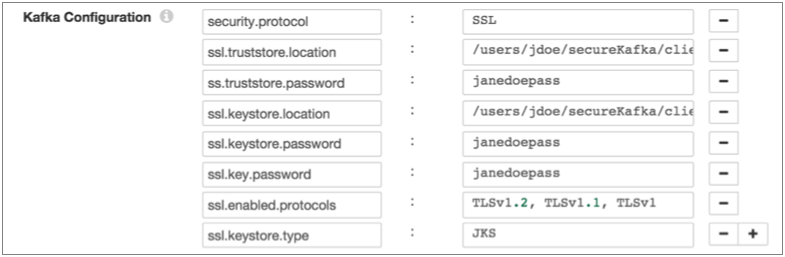

For example, the following properties allow the stage to use SSL/TLS to connect to Kafka with client authentication:

Enabling Kerberos (SASL)

When you use Kerberos authentication, Data Collector uses the Kerberos principal and keytab to connect to Kafka. Perform the following steps to enable the UDP to Kafka origin to use Kerberos to connect to Kafka.

To use Kerberos, first make sure Kafka is configured for Kerberos as described in the Kafka documentation.
Make sure that Kerberos authentication is enabled for Data Collector, as described in Kerberos Authentication.
Add the Java Authentication and Authorization Service (JAAS) configuration properties required for Kafka clients based on your installation and authentication type:
- RPM, tarball, or Cloudera Manager installation without LDAP authentication - If Data Collector does not use LDAP authentication, create a separate JAAS configuration file on the Data Collector machine. Add the following KafkaClient login section to the file:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="<keytab path>"
    principal="<principal name>/<host name>@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/sdc.keytab"
    principal="sdc/sdc-01.streamsets.net@EXAMPLE.COM";
};
```
  Then modify the SDC_JAVA_OPTS environment variable to include the following option that defines the path to the JAAS configuration file:
```
-Djava.security.auth.login.config=<JAAS config path>
```
  Modify environment variables using the method required by your installation type.
- RPM or tarball installation with LDAP authentication - If LDAP authentication is enabled in an RPM or tarball installation, add the properties to the JAAS configuration file used by Data Collector - the $SDC_CONF/ldap-login.conf file. Add the following KafkaClient login section to the end of the ldap-login.conf file:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="<keytab path>"
    principal="<principal name>/<host name>@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/sdc.keytab"
    principal="sdc/sdc-01.streamsets.net@EXAMPLE.COM";
};
```
- Cloudera Manager installation with LDAP authentication - If LDAP authentication is enabled in a Cloudera Manager installation, enable the LDAP Config File Substitutions (ldap.login.file.allow.substitutions) property for the StreamSets service in Cloudera Manager.
  If the Use Safety Valve to Edit LDAP Information (use.ldap.login.file) property is enabled and LDAP authentication is configured in the Data Collector Advanced Configuration Snippet (Safety Valve) for ldap-login.conf field, then add the JAAS configuration properties to the same ldap-login.conf safety valve.

  If LDAP authentication is configured through the LDAP properties rather than the ldap-login.conf safety value, add the JAAS configuration properties to the Data Collector Advanced Configuration Snippet (Safety Valve) for generated-ldap-login-append.conf field.

  Add the following KafkaClient login section to the appropriate field as follows:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="_KEYTAB_PATH"
    principal="<principal name>/_HOST@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="_KEYTAB_PATH"
    principal="sdc/_HOST@EXAMPLE.COM";
};
```
  Cloudera Manager generates the appropriate keytab path and host name.
On the General tab of the stage, set the Stage Library property to the appropriate Apache Kafka version.
On the Kafka tab, add the security.protocol Kafka configuration property, and set it to SASL_PLAINTEXT.
Then, add the sasl.kerberos.service.name configuration property, and set it to kafka.

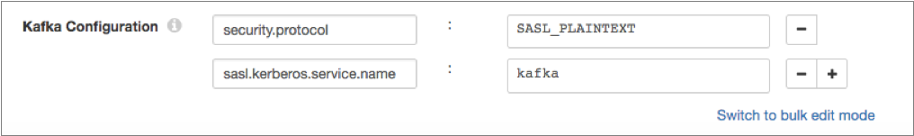

For example, the following Kafka properties enable connecting to Kafka with Kerberos:

Enabling SSL/TLS and Kerberos

You can enable the UDP to Kafka origin to use SSL/TLS and Kerberos to connect to Kafka.

To use SSL/TLS and Kerberos, combine the required steps to enable each and set the security.protocol property as follows:

Make sure Kafka is configured to use SSL/TLS and Kerberos (SASL) as described in the following Kafka documentation:
- http://kafka.apache.org/documentation.html#security_ssl
- http://kafka.apache.org/documentation.html#security_sasl
Make sure that Kerberos authentication is enabled for Data Collector, as described in Kerberos Authentication.
Add the Java Authentication and Authorization Service (JAAS) configuration properties required for Kafka clients based on your installation and authentication type:
- RPM, tarball, or Cloudera Manager installation without LDAP authentication - If Data Collector does not use LDAP authentication, create a separate JAAS configuration file on the Data Collector machine. Add the following KafkaClient login section to the file:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="<keytab path>"
    principal="<principal name>/<host name>@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/sdc.keytab"
    principal="sdc/sdc-01.streamsets.net@EXAMPLE.COM";
};
```
  Then modify the SDC_JAVA_OPTS environment variable to include the following option that defines the path to the JAAS configuration file:
```
-Djava.security.auth.login.config=<JAAS config path>
```
  Modify environment variables using the method required by your installation type.
- RPM or tarball installation with LDAP authentication - If LDAP authentication is enabled in an RPM or tarball installation, add the properties to the JAAS configuration file used by Data Collector - the $SDC_CONF/ldap-login.conf file. Add the following KafkaClient login section to the end of the ldap-login.conf file:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="<keytab path>"
    principal="<principal name>/<host name>@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/sdc.keytab"
    principal="sdc/sdc-01.streamsets.net@EXAMPLE.COM";
};
```
- Cloudera Manager installation with LDAP authentication - If LDAP authentication is enabled in a Cloudera Manager installation, enable the LDAP Config File Substitutions (ldap.login.file.allow.substitutions) property for the StreamSets service in Cloudera Manager.
  If the Use Safety Valve to Edit LDAP Information (use.ldap.login.file) property is enabled and LDAP authentication is configured in the Data Collector Advanced Configuration Snippet (Safety Valve) for ldap-login.conf field, then add the JAAS configuration properties to the same ldap-login.conf safety valve.

  If LDAP authentication is configured through the LDAP properties rather than the ldap-login.conf safety value, add the JAAS configuration properties to the Data Collector Advanced Configuration Snippet (Safety Valve) for generated-ldap-login-append.conf field.

  Add the following KafkaClient login section to the appropriate field as follows:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="_KEYTAB_PATH"
    principal="<principal name>/_HOST@<realm>";
};
```
  For example:
```
KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="_KEYTAB_PATH"
    principal="sdc/_HOST@EXAMPLE.COM";
};
```
  Cloudera Manager generates the appropriate keytab path and host name.
On the General tab of the stage, set the Stage Library property to the appropriate Apache Kafka version.
On the Kafka tab, add the security.protocol property and set it to SASL_SSL.
Then, add the sasl.kerberos.service.name configuration property, and set it to kafka.
Then add and configure the following SSL Kafka properties:
- ssl.truststore.location
- ssl.truststore.password
When the Kafka broker requires client authentication - when the ssl.client.auth broker property is set to "required" - add and configure the following properties:
- ssl.keystore.location
- ssl.keystore.password
- ssl.key.password
Some brokers might require adding the following properties as well:
- ssl.enabled.protocols
- ssl.truststore.type
- ssl.keystore.type
For details about these properties, see the Kafka documentation.

Configuring a UDP to Kafka Origin

Configure a UDP to Kafka origin to process UDP messages and write them directly to Kafka.

In the Properties panel, on the General tab, configure the following properties:

General Property	Description
Name	Stage name.
Description	Optional description.
Stage Library	Library version that you want to use.
On Record Error	Error record handling for the stage: Discard - Discards the record. Send to Error - Sends the record to the pipeline for error handling. Stop Pipeline - Stops the pipeline. Not valid for cluster pipelines.

On the UDP tab, configure the following properties:

UDP Property	Description
Port	Port to listen to for data. Using simple or bulk edit mode, click the Add icon to list additional ports. To listen to a port below 1024, Data Collector must be run by a user with root privileges. Otherwise, the operating system does not allow Data Collector to bind to the port. Note: No other pipelines or processes can already be bound to the listening port. The listening port can be used only by a single pipeline.
Data Format	Data format passed by UDP: collectd NetFlow syslog

UDP Property

Description

Port

Port to listen to for data. Using simple or bulk edit mode, click the Add icon to list additional ports.

To listen to a port below 1024, Data Collector must be run by a user with root privileges. Otherwise, the operating system does not allow Data Collector to bind to the port.

Note: No other pipelines or processes can already be bound to the listening port. The listening port can be used only by a single pipeline.

Data Format

Data format passed by UDP:

collectd
NetFlow
syslog

On the Kafka tab, configure the following properties:

UDP Property Description

Broker URI

UDP Property	Description
Broker URI	Connection string for the Kafka broker. Use the following format: `<host>:<port>`. To ensure a connection, enter a comma-separated list of additional broker URIs.
Topic	Kafka topic to read.
Kafka Configuration	Additional Kafka configuration properties to use. Using simple or bulk edit mode, click the Add icon to add properties. Define the Kafka property name and value. Use the property names and values as expected by Kafka. For information about enabling secure connections to Kafka, see Enabling Kafka Security.

Connection string for the Kafka broker. Use the following format: <host>:<port>.

To ensure a connection, enter a comma-separated list of additional broker URIs.

Topic Kafka topic to read.

Kafka Configuration

Additional Kafka configuration properties to use. Using simple or bulk edit mode, click the Add icon to add properties. Define the Kafka property name and value.

Use the property names and values as expected by Kafka.

For information about enabling secure connections to Kafka, see Enabling Kafka Security.

On the Advanced tab, configure the following properties:

Advanced Property	Description
Enable UDP Multithreading	Specifies whether to use multiple receiver threads for each port. Using multiple receiver threads can improve performance. You can use multiple receiver threads using epoll, which can be available when Data Collector runs on recent versions of 64-bit Linux.
Accept Threads	Number of receiver threads to use for each port. For example, if you configure two threads per port and configure the origin to use three ports, the origin uses a total of six threads. Use to increase the number of threads passing data to the origin when epoll is available on the Data Collector machine. Default is 1.
Write Concurrency	Maximum number of Kafka clients that the origin can use to write to Kafka. When configuring this property, consider the number of Kafka brokers, partitions, and volume of data to be written.

Advanced Property

Description

Enable UDP Multithreading

Specifies whether to use multiple receiver threads for each port. Using multiple receiver threads can improve performance.

You can use multiple receiver threads using epoll, which can be available when Data Collector runs on recent versions of 64-bit Linux.

Accept Threads

Number of receiver threads to use for each port. For example, if you configure two threads per port and configure the origin to use three ports, the origin uses a total of six threads.

Use to increase the number of threads passing data to the origin when epoll is available on the Data Collector machine.

Default is 1.

Write Concurrency

Maximum number of Kafka clients that the origin can use to write to Kafka.

When configuring this property, consider the number of Kafka brokers, partitions, and volume of data to be written.

For NetFlow 9 data, on the NetFlow 9 tab, configure the following properties:

When processing earlier versions of NetFlow data, these properties are ignored.

Netflow 9 Property	Description
Record Generation Mode	Determines the type of values to include in the record. Select one of the following options: Raw Only Interpreted Only Both Raw and Interpreted
Max Templates in Cache	The maximum number of templates to store in the template cache. For more information about templates, see Caching NetFlow 9 Templates. Default is -1 for an unlimited cache size.
Template Cache Timeout (ms)	The maximum number of milliseconds to cache an idle template. Templates unused for more than the specified time are evicted from the cache. For more information about templates, see Caching NetFlow 9 Templates. Default is -1 for caching templates indefinitely.
