Reading and Processing XML Data

You can parse XML documents from an origin system with an origin enabled for the XML data format. You can also parse XML documents in a field in a Data Collector record with the XML Parser processor.

You can use the XML data format and the XML Parser to process well-formed XML documents. If you want to process invalid XML documents, you can try using the text data format with custom delimiters. For more information, see Processing XML Data with Custom Delimiters.

Data Collector uses a user-defined delimiter element to determine how it generates records. When processing XML data, you can generate a single record or multiple records from an XML document, as follows:

Generate a single record: To generate a single record from an XML document, do not specify a delimiter element.; When you generate a single record from an XML document, the entire document is written to the record as a map.
Generate multiple records using an XML element: You can generate multiple records from an XML document by specifying an XML element as the delimiter element.; You can use an XML element when the element resides directly under the root element.
Generate multiple records using a simplified XPath expression: You can generate multiple records from an XML document by specifying a simplified XPath expression as the delimiter element.; Use a simplified XPath expression to access data below the first level of elements in the XML document, to access namespaced elements, elements deeper in complex XML documents.

For a full list of origins that support this data format, see Origins in the "Data Formats by Stage" appendix.

Creating Multiple Records with an XML Element

You can generate records by specifying an XML element as a delimiter.

When the data you want to use is in an XML element directly under the root element, you can use the element as a delimiter. For example, in the following valid XML document, you can use the msg element as a delimiter element:

<?xml version="1.0" encoding="UTF-8"?>
<root>
 <msg>
    <time>8/12/2016 6:01:00</time>
    <request>GET /index.html 200</request>
 </msg>
 <msg>
    <time>8/12/2016 6:03:43</time>
    <request>GET /images/sponsored.gif 304</request>
 </msg>
</root>

Processing the document with the msg delimiter element results in two records.

Note: When configuring the Delimiter Element property, enter just the XML element name, without surrounding carat characters. That is, use msg instead of <msg>.

Using XML Elements with Namespaces

When you use an XML element as a delimiter, Data Collector uses that exact element name that you specify to generate records.

If you include a namespace prefix in the XML element, you must also define the namespace in the stage. Then, Data Collector can process the specified XML element with the prefix.

For example, you use the a:msg element as the delimiter element and define the Company A namespace in the stage. Then, Data Collector processes only the a:msg element in the Company A namespace. It generates one record for the following document, ignoring data in the c:msg element:

<?xml version="1.0" encoding="UTF-8"?>
<root>
	<a:msg xmlns:a="http://www.companyA.com">
		<time>8/12/2016 6:01:00</time>
		<request>GET /index.html 200</request>
	</a:msg>
	<c:msg xmlns:c="http://www.companyC.com">
		<item>Shoes</item>
		<item>Magic wand</item>
		<item>Tires</item>
	</c:msg>
	<c:msg xmlns:c="http://www.companyC.com">
		<time>8/12/2016 6:03:43</time>
		<request>GET /images/sponsored.gif 304</request>
	</c:msg>
</root>

In the stage, you define the Namespace property using the prefix "a" and the namespace URI: http://www.companyA.com.

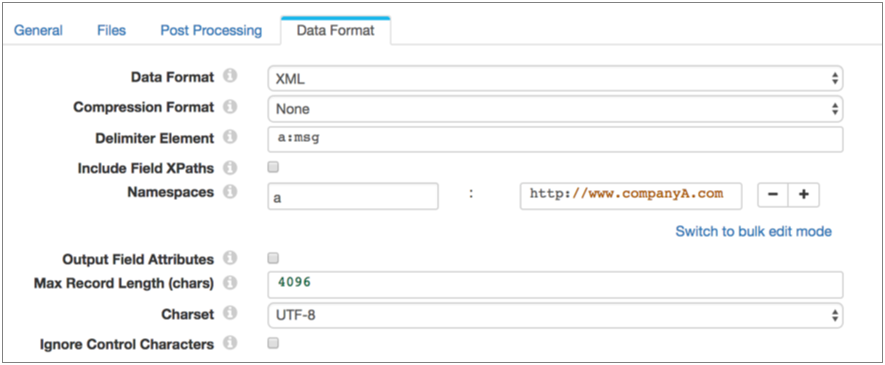

The following image shows a Directory origin configured to process this data:

Creating Multiple Records with an XPath Expression

You can generate records from an XML document using a simplified XPath expression as the delimiter element.

Use a simplified XPath expression to access data below the first level of elements in the XML document. You can also use an XPath expression to access namespaced elements or elements deeper in complex XML documents.

For example, say an XML document has record data in a second level msg element, as follows:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <data>
        <msg>
            <time>8/12/2016 6:01:00</time>
            <request>GET /index.html 200</request>
        </msg>
    </data>
    <data>
        <msg>
            <time>8/12/2016 6:03:43</time>
            <request>GET /images/sponsored.gif 304</request>
        </msg>
    </data>
</root>

Since the msg element is not directly under the root element, you cannot use it as a delimiter element. But you can use the following simplified XPath expression to access the data:

/root/data/msg

Or, if the first level data element can sometimes be info, you can use the following XPath expression to access any data in the msg element that is two levels deep:

/root/*/msg

Using XPath Expressions with Namespaces

When using an XPath expression to process XML documents, you can process data within a namespace. To access data in a namespace, define the XPath expression, then use the Namespace property to define the prefix and definition of the namespace.

For example, the following XML document includes two namespaces, one for Company A and one for Company C:

<?xml version="1.0" encoding="UTF-8"?>
<root>
	<a:data xmlns:a="http://www.companyA.com">
		<msg>
			<time>8/12/2016 6:01:00</time>
			<request>GET /index.html 200</request>
		</msg>
	</a:data>
	<c:data xmlns:c="http://www.companyC.com">
		<sale>
			<item>Shoes</item>
			<item>Magic wand</item>
			<item>Tires</item>
		</sale>
	</c:data>
	<a:data xmlns:a="http://www.companyA.com">
		<msg>
			<time>8/12/2016 6:03:43</time>
			<request>GET /images/sponsored.gif 304</request>
		</msg>
	</a:data>
</root>

To create records from data in the msg element in the Company A namespace, you can use either of the following XPath expressions:

/root/a:data/msg
/root/*/msg

Then define the Namespace property using the prefix "a" and the namespace URI: http://www.companyA.com.

The following image shows a Directory origin configured to process this data:

Simplified XPath Syntax

When using an XPath expression to generate records from an XML document, use a simplified version of the abbreviated XPath syntax.

Use the abbreviated XPath syntax with the following restrictions:

Operators and XPath functions: Do not use operators or XPath functions in the XPath expression.

Axis selectors

Use only the single slash ( / ) child selector. The descendant-or-self double slash selector ( // ) is not supported.

Node tests

Only node name tests are supported. Note the following details:

You can use namespaces with node names, defined with an XPath namespace prefix. For more information, see Using XPath Expressions with Namespaces.
Do not use namespaces for attributes.
Elements can include predicates.

Predicates

You can use the position predicate or attribute value predicate with elements, not both.
Use the following syntax to specify a position predicate:
```
/<element>[<position number>]
```
Use the following syntax to specify an attribute value predicate:
```
/<element>[@<attribute name>='<attribute value>']
```
You can use the asterisk wildcard as the attribute value. Surround the value in single quotation marks.

For more information, see Predicates in XPath Expressions.

Wildcard character

You can use the asterisk ( * ) to represent a single element, as follows:

/root/*/msg

You can also use the asterisk to represent any attribute value. Use the asterisk to represent the entire value, as follows:

/root/info[@attribute='*']/msg

Sample XPath Expressions

Here are some examples of valid and invalid XPath expressions:

Valid expressions

The following expression selects every element beneath the first top-level element.

/*[1]/*

The following expression selects every value element under an allvalues element with a source attribute set to "XYZ". The allvalues element below a top-level element named root. Each element is in the abc namespace:

/abc:root/abc:allvalues[@source='XYZ']/xyz:value

Invalid expressions

The following expressions are not valid:

/root//value - Invalid because the descendent-or-self axis (“//”) is not supported.
/root/collections[last()]/value - Invalid because functions, e.g. last, are not supported.
/root/collections[@source='XYZ'][@sequence='2'] - Invalid because multiple predicates for an element are not supported.
/root/collections[@source="ABC"] - Invalid because attribute the attribute value should be in single quotation marks.
/root/collections[@source] - Invalid because the expression uses an attribute without defining the attribute value.

Predicates in XPath Expressions

You can use predicates in XPath expressions to process a subset of element instances. You can use a position predicate or attribute values predicate with an element, but not both. You can also use a wildcard to define the attribute value.

Position predicate

The position predicate indicates the instance of the element to use in the file. Use a position predicate when the element appears multiple times in a file, and you want to use a particular instance based on the position of the instances in the file, e.g. the first, second, or third time the element appears in the file.

Use the following syntax to specify a position predicate:

/<element>[<position number>]

For example, say the contact element appears multiple times in the file, but you only care about the address data in the first instance in the file. Then you can use a predicate for the element as follows:

/root/contact[1]/address

Attribute value predicate

The attribute value predicate limits the data to elements with the specified attribute value. Use the attribute value predicate when you want to specify an element with a particular attribute values or an element that simply has an attribute value defined.

Use the following syntax to specify an attribute value predicate:

/<element>[@<attribute name>='<attribute value>']

You can use the asterisk wildcard as the attribute value. Surround the value in single quotation marks.

For example, if you only wanted server data with a region attribute set to "west", you can add the region attribute as follows:

/*/server[@region='west']

Predicate Examples

To process all data in a collections element under the apps second-level element, you would use the following simplified XPath expression:

/*/apps/collections

If you only wanted the data under the first instance of apps in the XML document, you would add a position predicate as follows:

/*/apps[1]/collections

To only process data from all app elements in the document where the collections element has a version attribute set to 3, add the version attribute and value as follows:

/*/apps/collections[@version='3']

If you don't care what the value of the attribute is, you can use a wildcard for the attribute value, as follows:

/root/apps/collections[@version='*']

Including Field XPaths and Namespaces

You can include field XPath expressions and namespaces in the record by enabling the Include Field XPaths property.

When enabled, the record includes the XPath expression for each field as a field attribute and includes each namespace in an xmlns record header attribute. By default, this information is not included in the record.

For example, say you have the following XML document:

<?xml version="1.0" encoding="UTF-8"?>
<bookstore xmlns:prc="http://books.com/price">
   <b:book xmlns:b="http://books.com/book">
      <title lang="en">Harry Potter</title>
      <prc:price>29.99</prc:price>
   </b:book>
   <b:book xmlns:b="http://books.com/book">
      <title lang="en_us">Learning XML</title>
      <prc:price>39.95</prc:price>
   </b:book>
</bookstore>

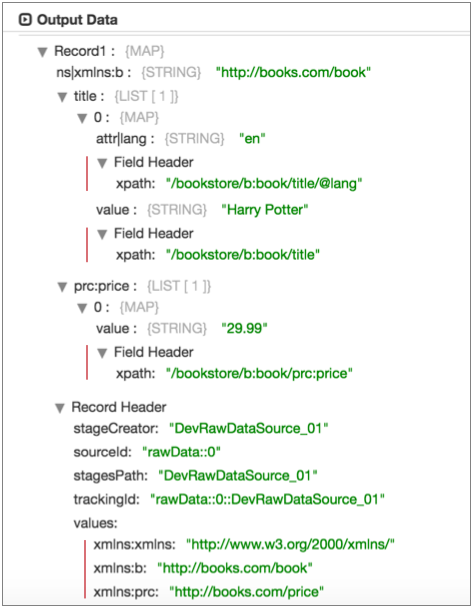

When you use /*[1]/* as the delimiter element and enable the Include Field XPaths property, Data Collector generates the following records with the highlighted field XPath expressions and namespace record header attributes:

Note: Field attributes and record header attributes are written to destination systems automatically only when you use the SDC RPC data format in destinations. For more information about working with field attributes and record header attributes, and how to include them in records, see Field Attributes and Record Header Attributes.

XML Attributes and Namespace Declarations

Parsed XML includes XML attributes and namespace declarations in the record as individual fields by default. You can use the Output Field Attributes property to place the information in field attributes instead.

Place the information in field attributes to avoid adding unnecessary information in the record fields.

Note: Field attributes are automatically included in records written to destination systems only when you use the SDC RPC data format in the destination. For more information about working with field attributes, see Field Attributes.

Parsed XML

When parsing XML documents with the XML data format or the XML Parser processor, Data Collector generates a field that is a map of fields based on nested elements, text nodes, and attributes. Comment elements are ignored.

For example, say you have the following XML document:

<?xml version="1.0" encoding="UTF-8"?>
<root>
 <a:info xmlns:a="http://www.companyA.com">
  <sale>
    <item>Apples</item>
    <item>Bananas</item>
  </sale>
</a:info>
<c:info xmlns:c="http://www.companyC.com">
  <sale>
    <item>Shoes</item>
    <item>Magic wand</item>
    <item>Tires</item>
  </sale>
 </c:info>
</root>

To create records for the data in the sale element in both namespaces, you can use a wildcard to represent the second level info element, as follows:

/root/*/sale

Then, you define both namespaces in the origin.

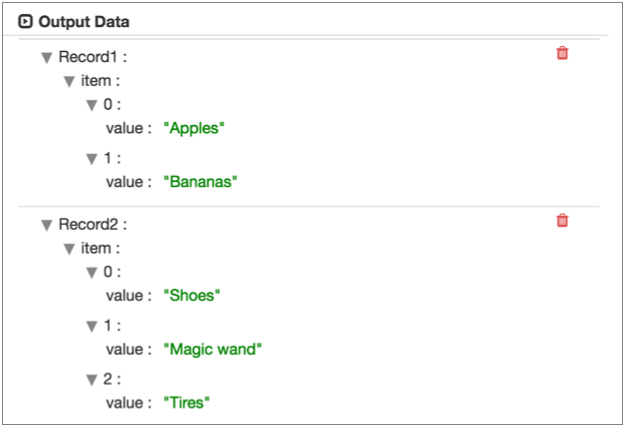

When processing the XML document using default XML properties, Data Collector produces two records, as shown in the following data preview of the origin:
